Middle Speed Paper Bowl Machine

SZB/F Middle-Speed Paper Bowl Forming Machine is developed on the basis of a normal speed machine and it includes an automatic bowl collect system and enjoyed the high-speed automatic paper cup shaper of three national patents.

Watch the video of this model machine, please click the below link website:

Model

SZB/F

Bowl Body Sealing

Ultrasonic

Production Capacity

60-70PCS/min

Required Paper

190-400gsm Single or double Sides PE Paper

Bowl’s Range

Top Dia:90 -145MM , Cup Height:90-160MM ,Bottom Dia:70-100MM , Bottom Knurling Height:5 -10 MM (12-60 OZ)

Water Cooling

Water Cooling Recycle Part For Double Sides PE Paper Bowls

Total Power

220/380V 50/60HZ 12KW (Average Working:9KW)

Overall Dimensions

Main Machine:2450*1400*1900mm(L*W*H)
Cup Collecting Device:1000*1800*900mm(L*W*H)

Weight

3000kgs

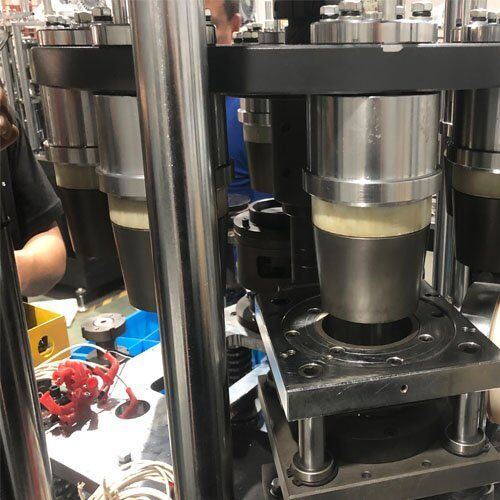

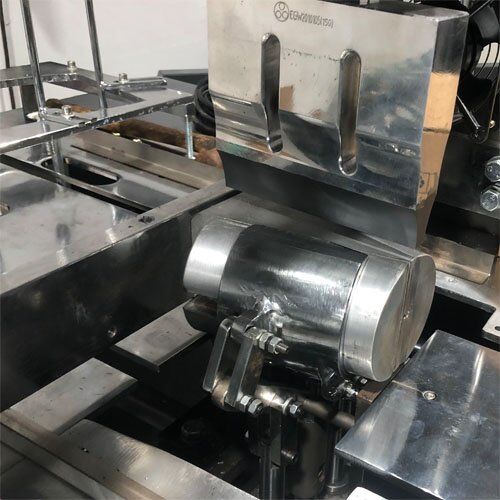

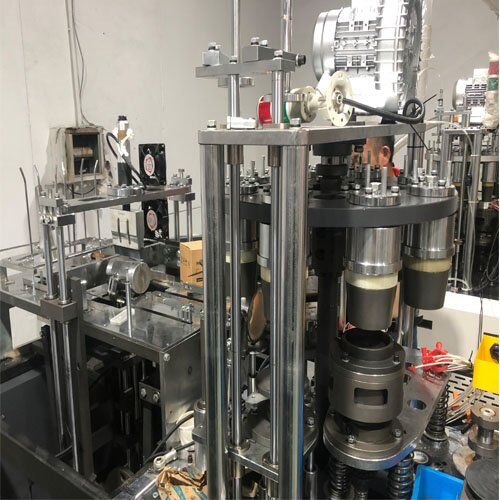

Detail About Middle Speed Paper Bowl Machine

Its special automatic OIL lubrication design can decrease damage of friction and to reduce noise. Also it adopt Servo Motor for bottom paper feeding.With low electricity, automatic lubrication system, safety guard system, it is the ideal equipment of producing both hot and cold drink paper bowls and other food package.
