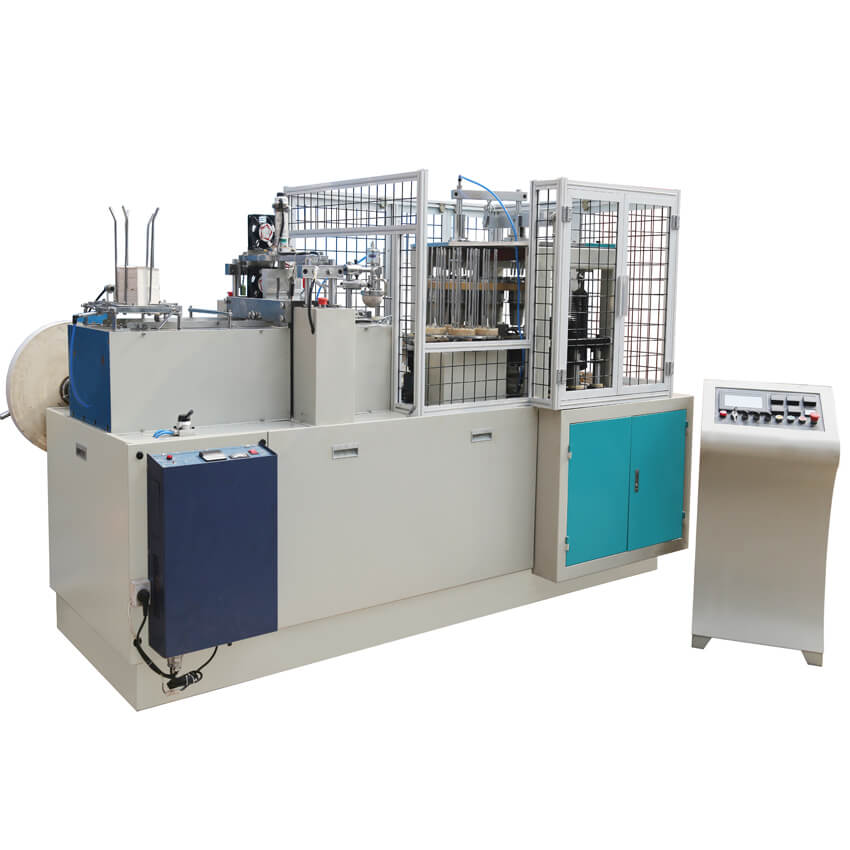

SZB/M Paper Cup Forming Machine is developed on the basis of normal speed machine and high speed paper cup machine, and enjoyed the high-speed automatic paper cup shaper of two national patents.
Watch the video of this model machine,please click the below link website:
http://victorymachine.com/video-of-middle-speed-paper-cup-machine
Model | SZB/M |
---|---|
Production Capacity | 70-80PCS/min |
Required Paper | 150-400gsm Single or double Sides PE Paper |
Cup’s Range | Top Dia:50 -85MM , Cup Height:50-115MM ,Bottom Dia:35-65MM , Bottom Knurling Height:5 -10 MM (3-16oz) |
Total Power | 220/380V 50/60HZ 4.5KW |
Overall Dimensions | 2750*1420*1800mm(L*W*H) |
Weight | 2300kgs |
Its special automatic lubrication design can decrease damage of friction and to reduce noise. With low electricity, automatic lubrication system, safety guard system, it is the ideal equipment of producing both hot and cold drink paper cups and other food package.
