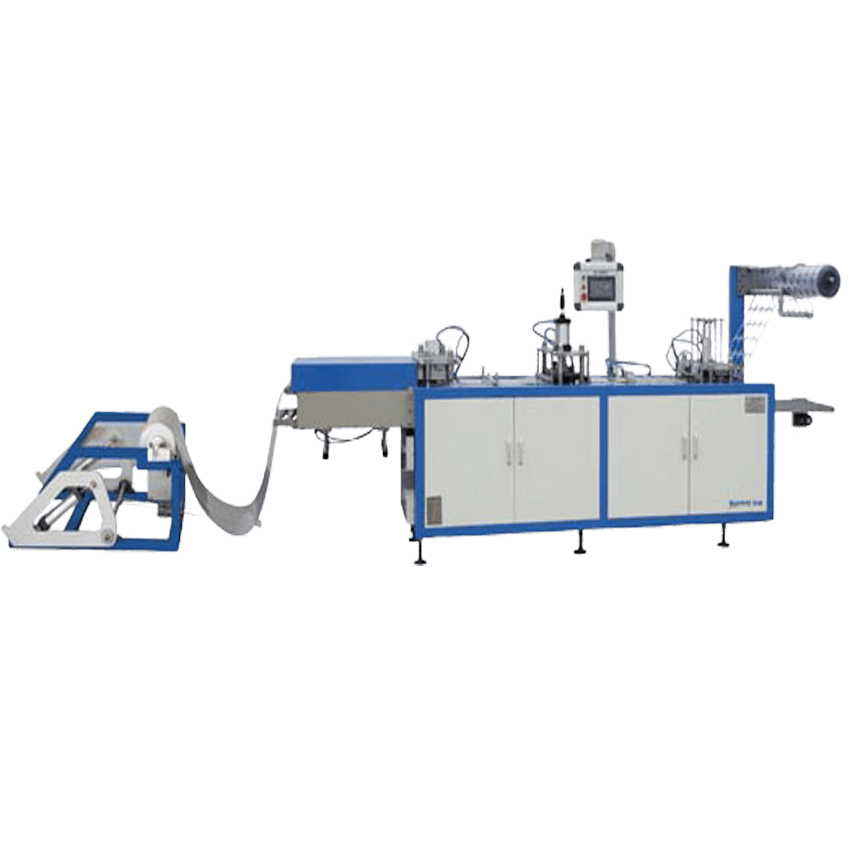

Plastic Lid Forming Machine

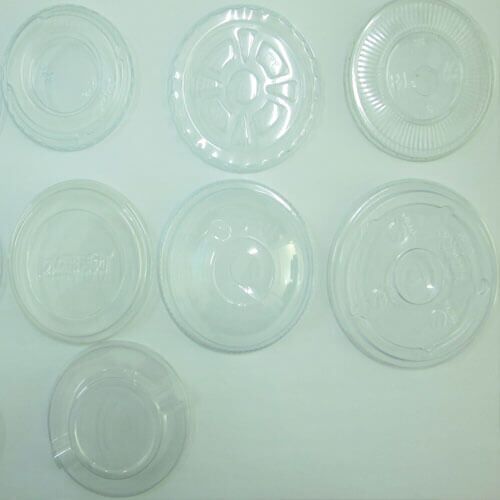

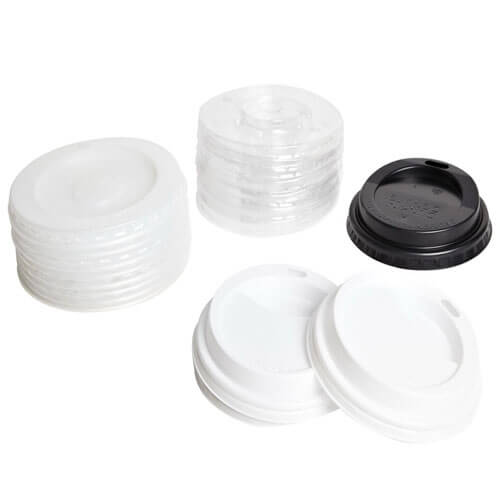

This lid machine can produce PET,PVC,PS and other plastic products,like plastic lid,medicine trays,food tray and other small container products

Watch the video of this model machine,please click the below link website:

Model	SBG
Production Capacity	45-150PCS/min
Required Material	PET,PVC,PS
Max Forming Length	450mm
Max Forming Width	180mm
Max Forming Depth	46mm
Air Consumsuption	0.36 cubic meter/minute
Mold Cooling Water	Recycle Water With 60L/H Consumption
Total Power	220/380V 50/60HZ 7KW
Overall Dimensions	3200x1100x2000mm(LWH)
Weight	1200kgs

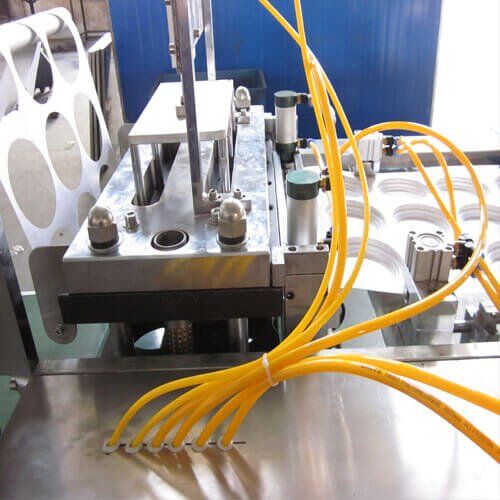

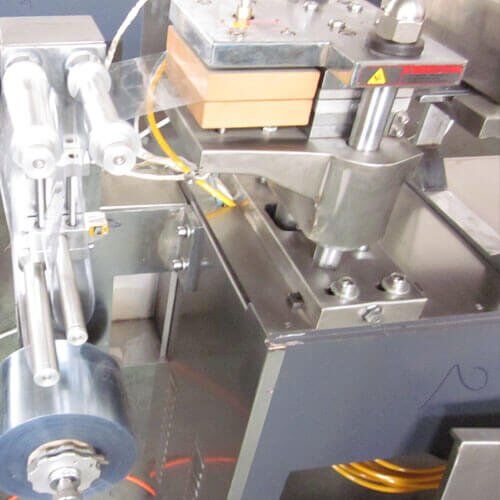

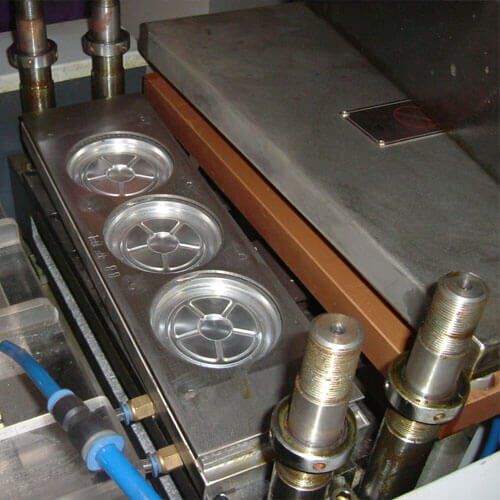

Detail About Plastic Lid Forming Machine

Features:

PLC Automatic Control System,Frequency Control

Man-machine interface operation

Servo motor feeding more accurate

Cutting high precison,no flash
